Mirage Series

Mirage are colourful modules that turn new or existing rooftops into electricity-generating surfaces - especially suited for conservation areas or heritage-sensitive projects where visual impact matters. At the same time, Mirage goes beyond a coloured rooftop application. The company also offers BIPV solutions with a high level of customization, allowing the modules to be fully integrated into building facades and architectural elements.

Solar Design for Modern Urban Architecture

Available as single-glass or double-glass modules in five striking colours—Terracotta, Sahara, Frost, Blues, and Emerald—Mirage offers architects and constructors versatile design options. Featuring N-type monocrystalline cells, these modules deliver reliable energy generations with minimal degradation, guaranteeing long-term performance.

Double-glass360 - 385 W
Single-glass355 - 380 W

Potencia

19.29%

19.03%

Eficiencia

12 Years

12 Years

Garantía

Cuáles son sus

mejores características

Colour Choice

A selection of front colours allows the module to be visually matched to a wide range of roof colours.

Reduced Cleaning Frequency

Mirage modules feature a self-cleaning surface with hydrophobic pearlescent ink, which minimizes dust accumulation and reduces cleaning frequency by 20–30%

Minimized Self-Shading

High-precision silk printing aligns patterns with cell grid lines to within ±0.1 mm, reducing self-shading and ensuring stable output and a sleek appearance

Lighter and Easier to Install

Single-glass Mirage modules – compared to conventional facade materials - are easier to install, reduce building load and system cost by 10–15%

Award Winner

Honoured with the German Design Award 2026 for Excellent Product Design – Energy, Mirage exemplifies AESOLAR’s dedication to precision engineering and aesthetic innovation

las capas ocultas una mirada más cercana

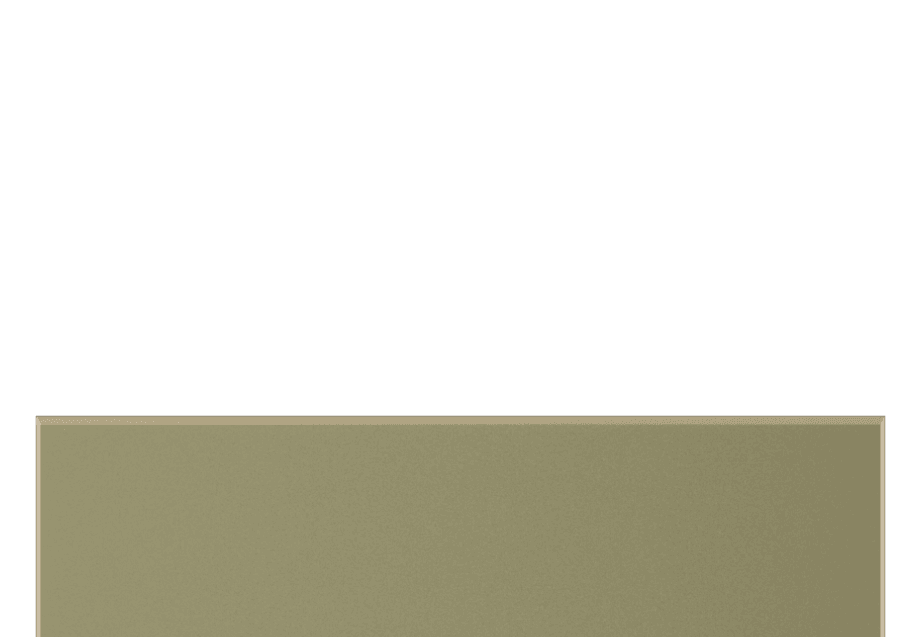

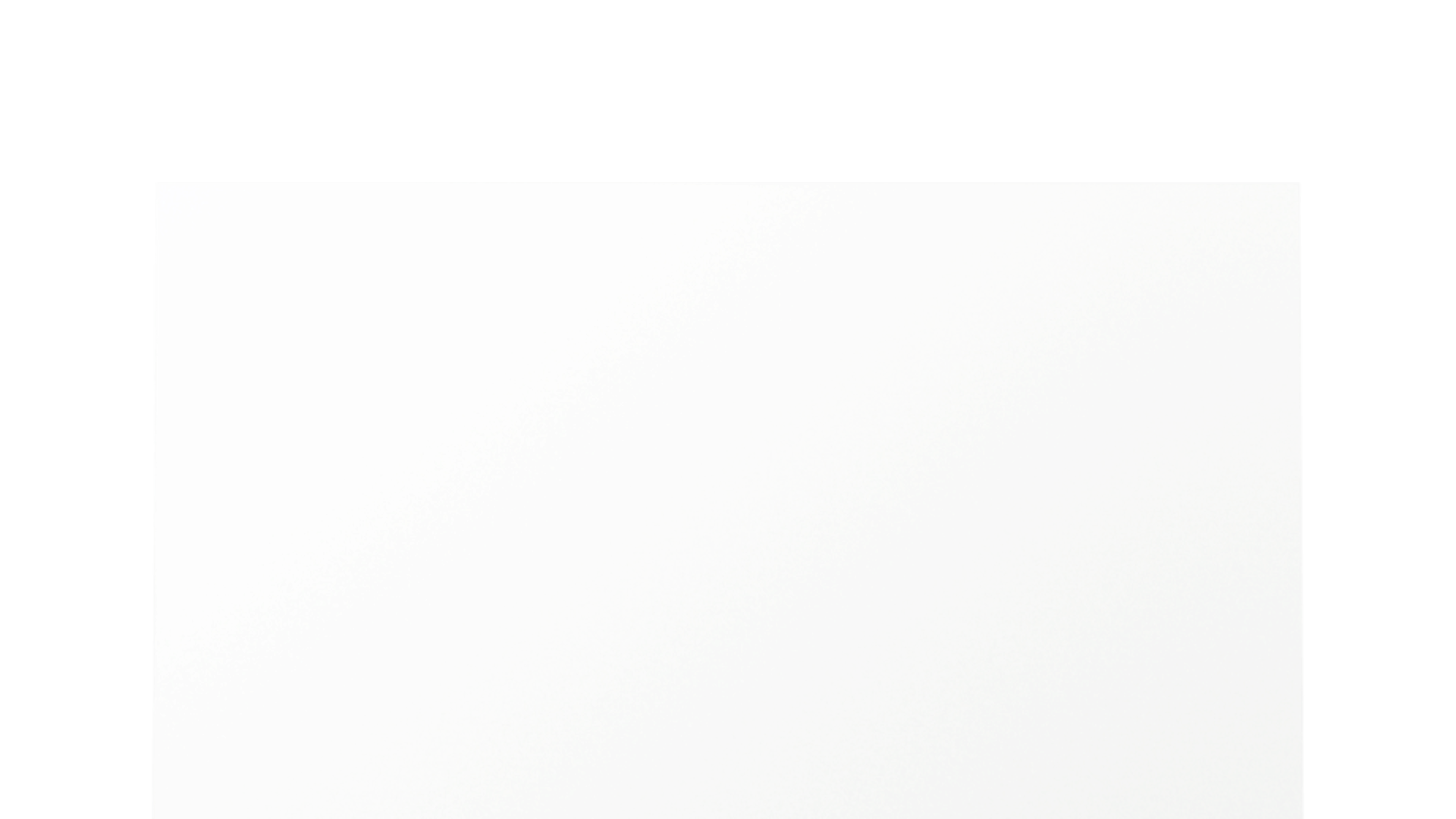

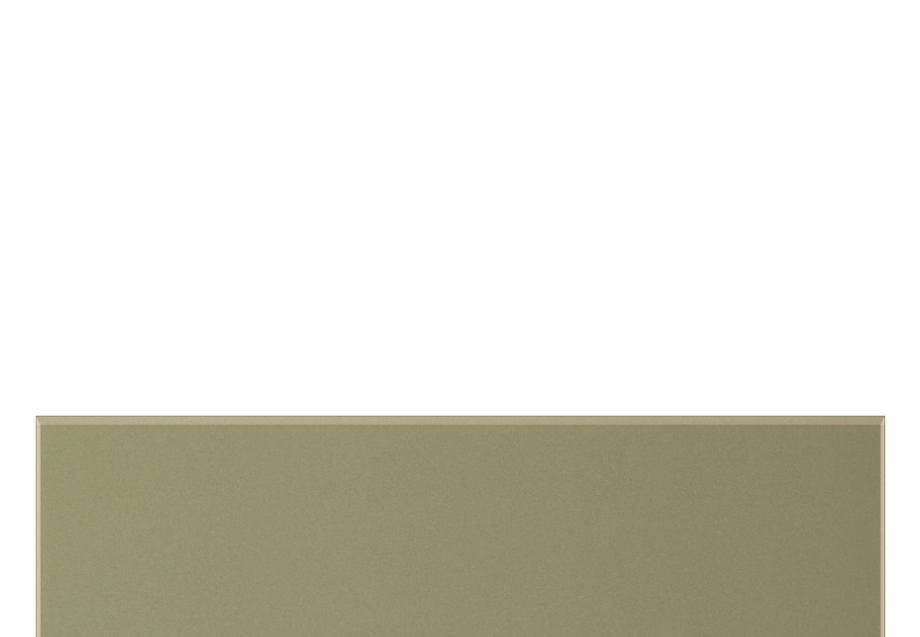

Front cover

Fully customizable coloured and anti-glaring glass that blends in with any environment (matt or glossy).

Front encapsulation

Double-glass module: POE encapsulant
Single-glass module: EVA encapsulant.

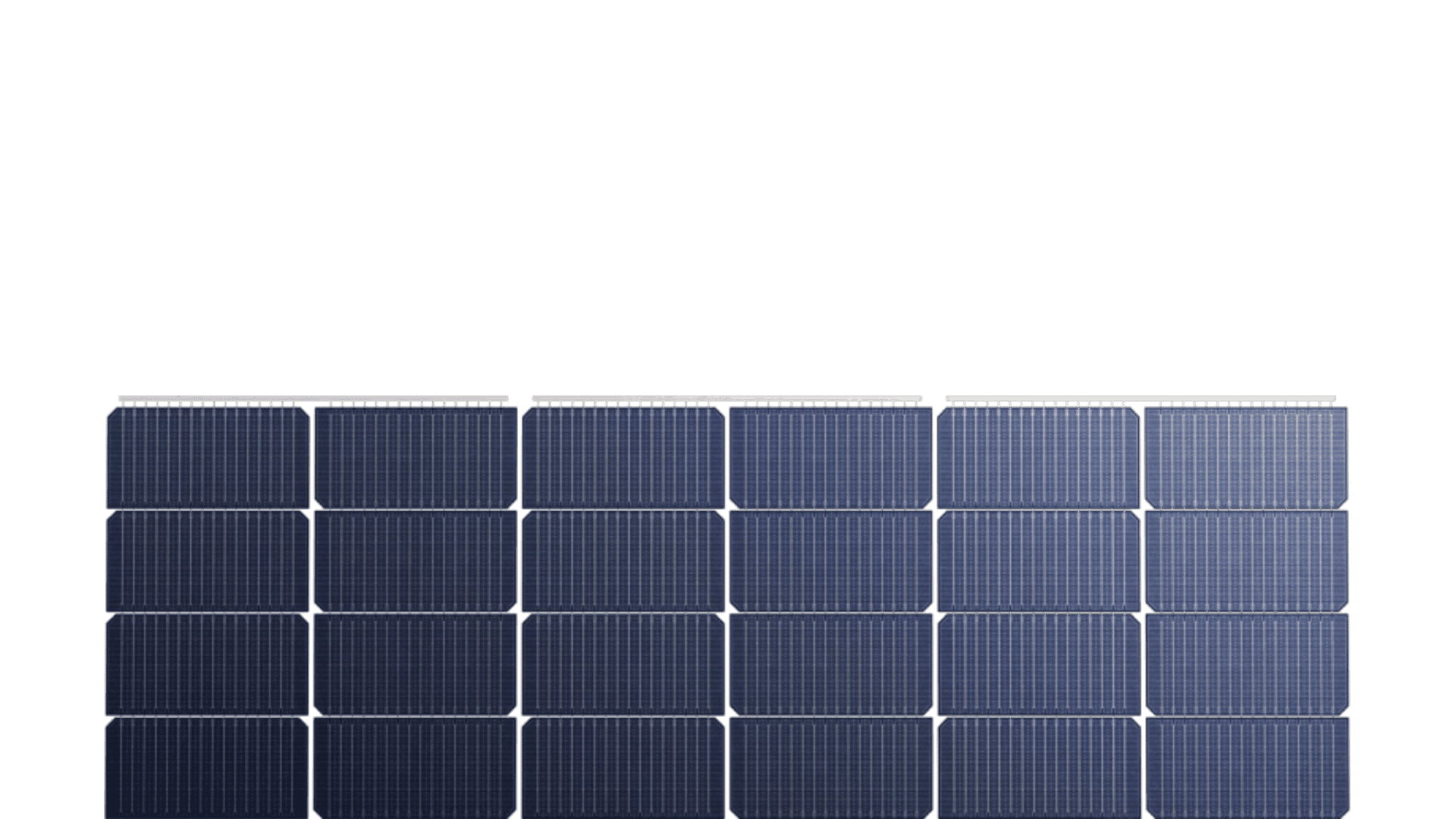

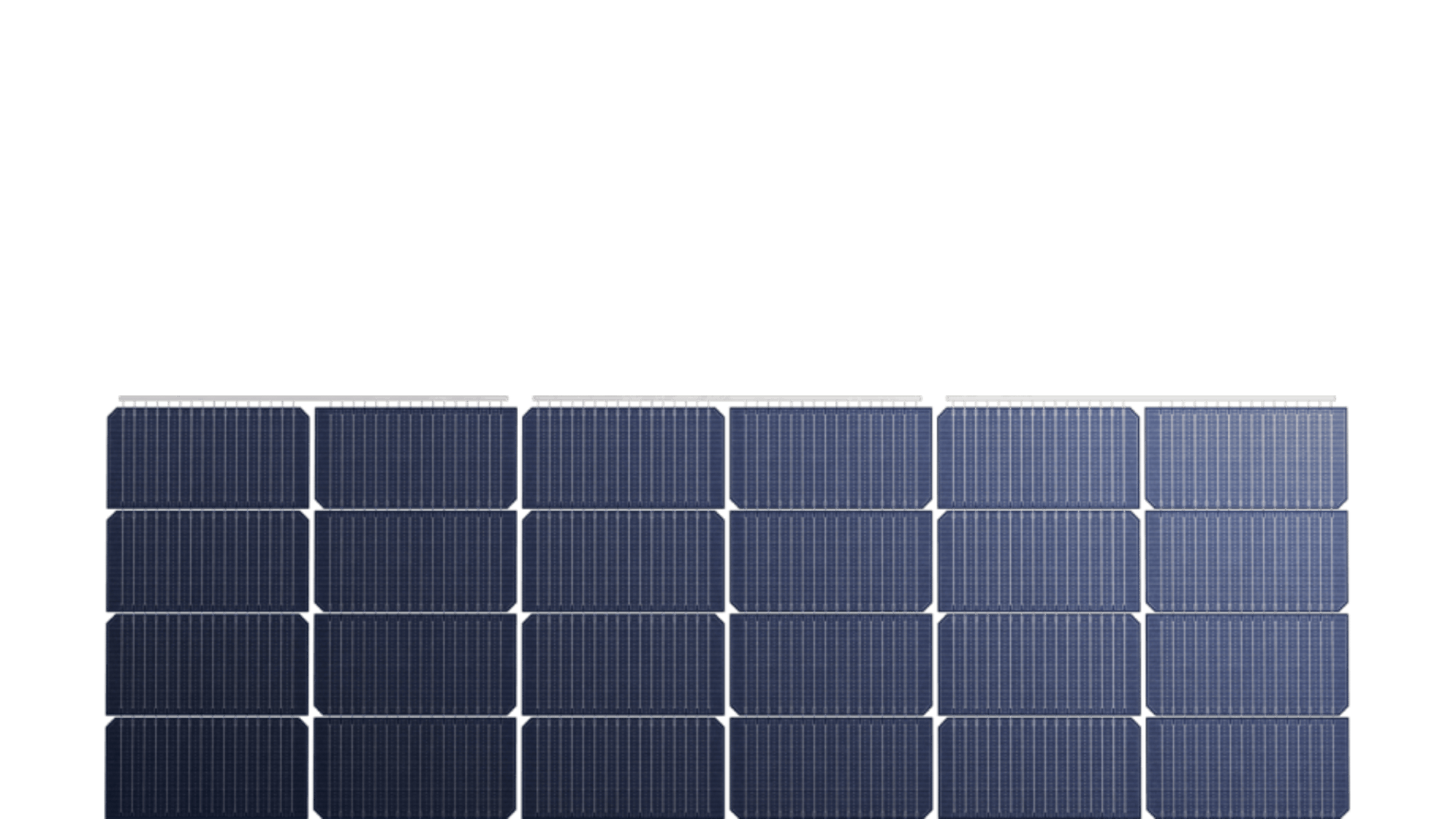

Solar Cells

High-efficiency N-type mono half-cut cells

Rear encapsulation

Double-glass module: POE encapsulant
Single-glass module: EVA encapsulant.

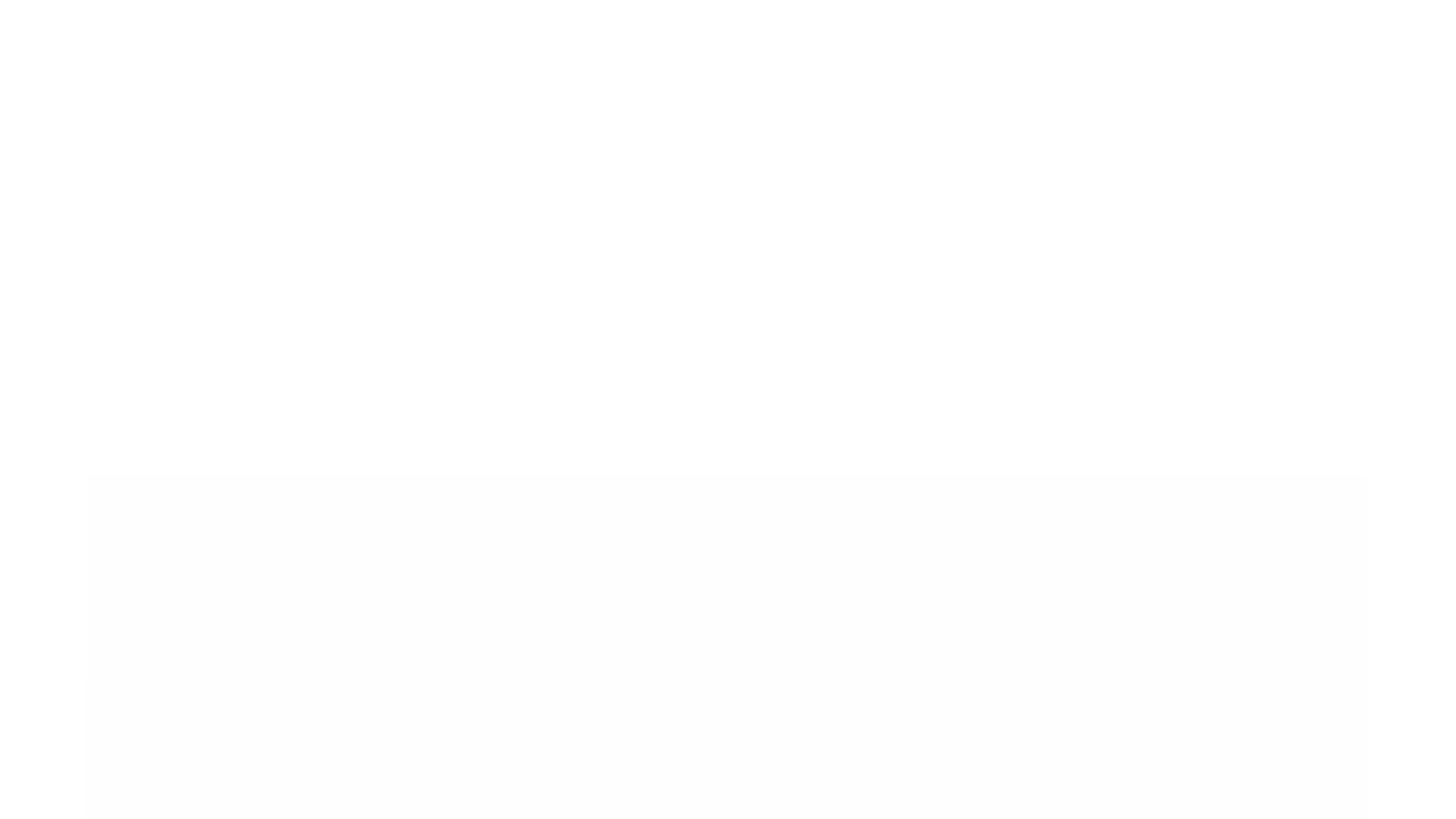

Back Cover

Double-glass module: 2.0 mm high transmission solar glass (tempered)
Single-glass module: multi –layered backsheet with composite film for higher thermal resistance

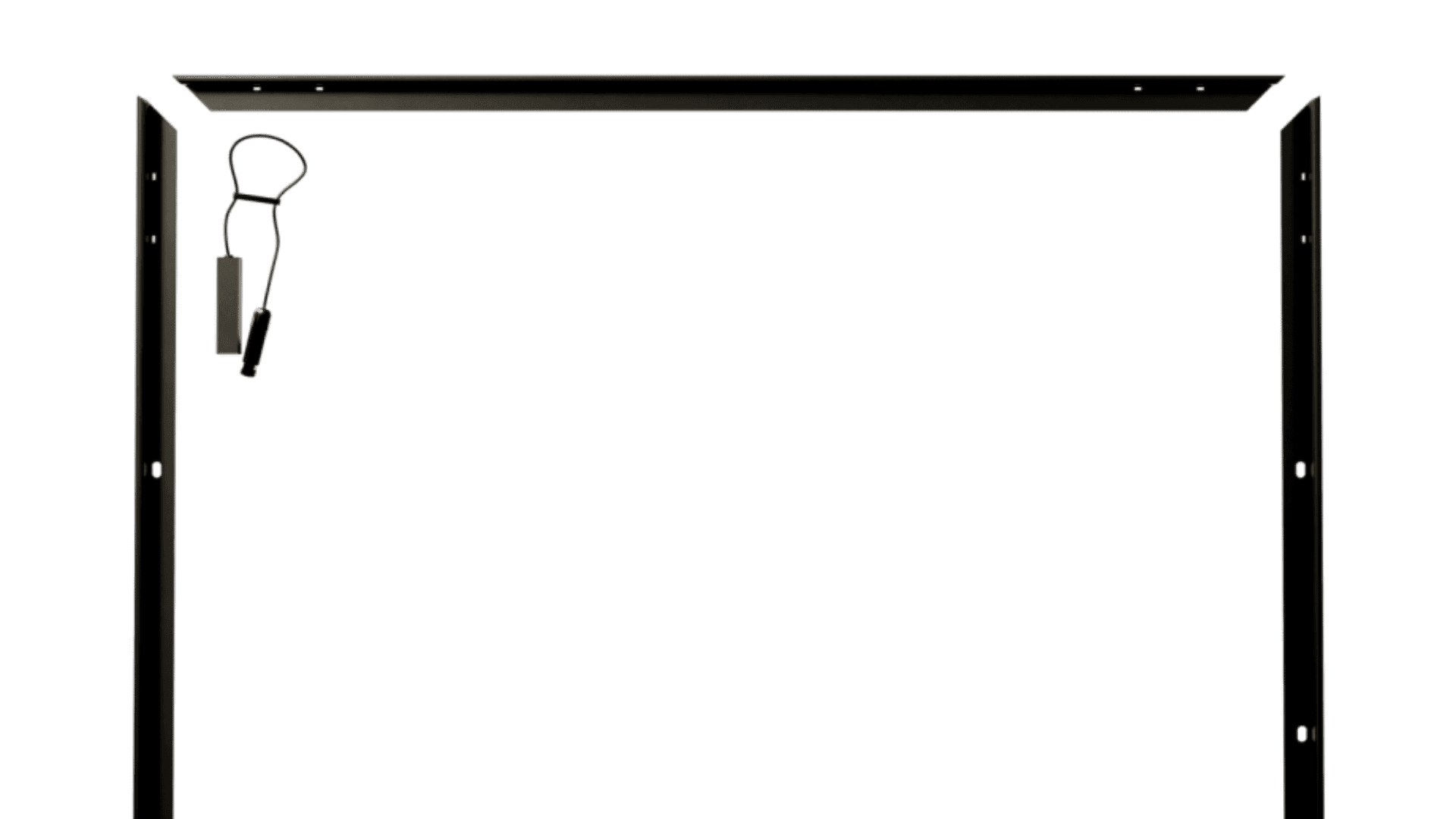

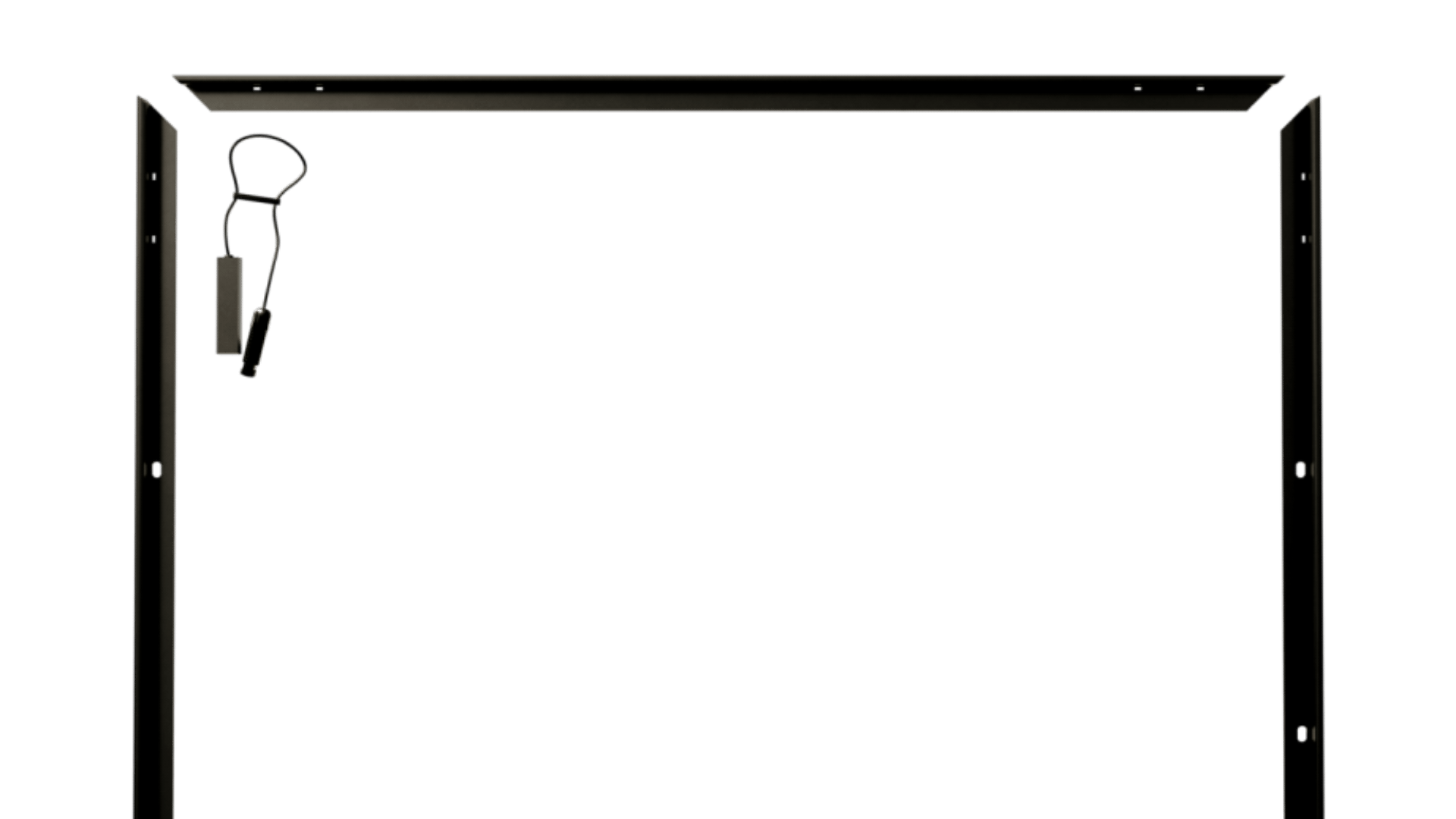

Frame

Sleek anodized aluminium frame for strength and clean aesthetics.

Crea tu

propio espacio

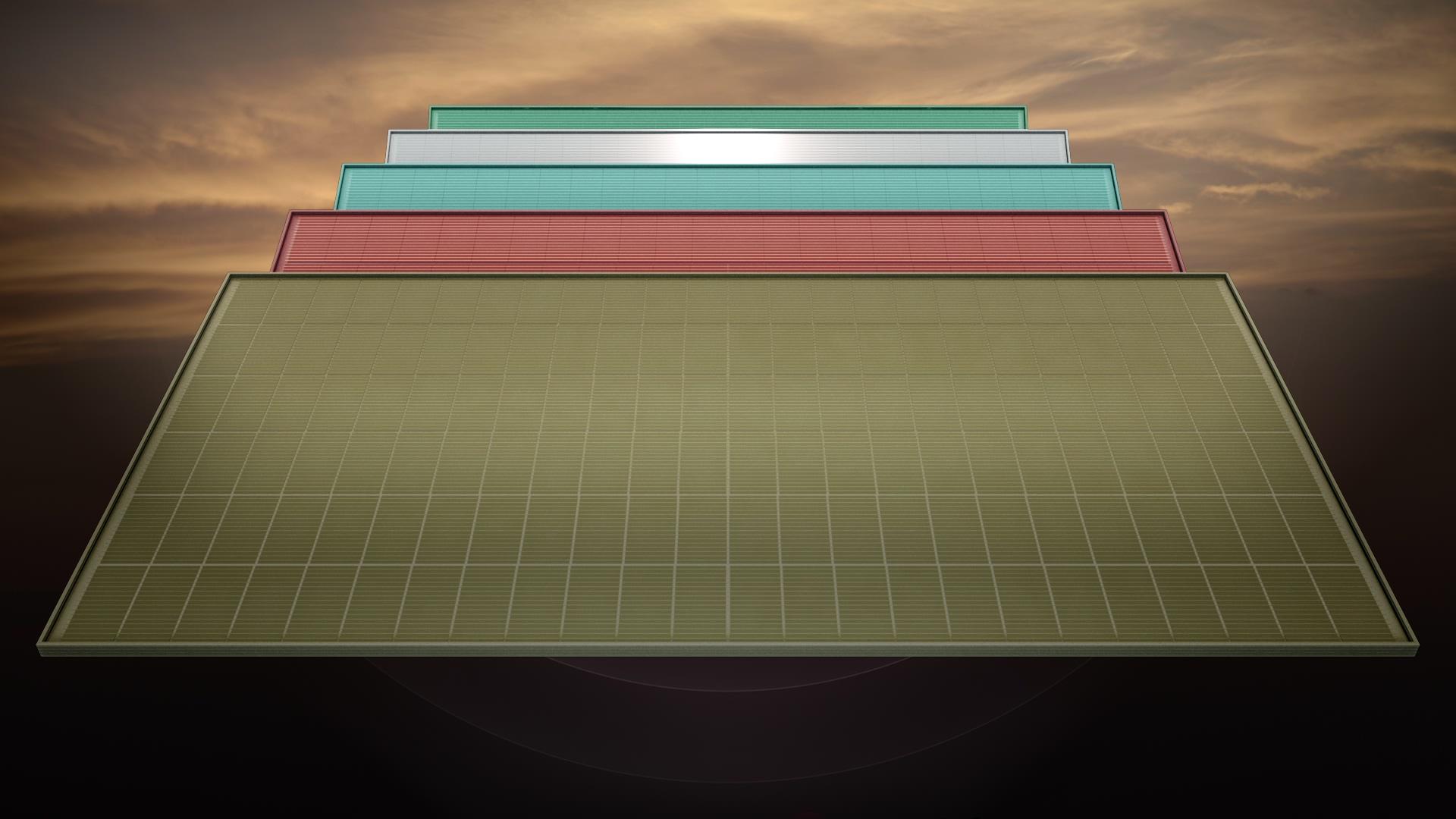

5 striking colors

Choose from 5 striking colours—Terracotta, Sahara, Frost, Blues, and Emerald - to complement any architectural style.

Architectural Harmony

Coloured Mirage rooftop PV modules blend in with existing roof colour, preserving the building's architectural identity.

Colour Harmony

Coloured Mirage rooftop PV modules offer an alternative to conventional black modules enabling colour harmony for heritage buildings or private homes.

Conclusión

German-engineered Mirage modules combine practicality, performance, and design. Their self-cleaning surface reduces maintenance by 20–30%, and single-glass modules lower building load and system costs by 10–15%. These modules provide a colourful, distinctive architectural appearance while maintaining high efficiency — up to 19.29% (double-glass) and up to 19.03% (single-glass) — thanks to the optimized silk-printing layer that preserves performance by transmitting and redirecting sunlight into the cells. With Mirage, architects and constructors can deliver cost-effective projects.
